12V vs 24V Truck Switches: What Buyers Need to Confirm

The voltage printed on a truck does not prove that a switch marked 12V or 24V can replace another part. Treat the nominal system voltage as one input. Before approving a candidate, confirm the exact circuit role, the switch’s documented electrical and interface requirements, and the vehicle-plus-SKU evidence for the specific application.

A practical review therefore has three outcomes:

• Candidate: every decisive record agrees for the exact vehicle, circuit and proposed part, so the item can move to sample or order approval.
• Hold: one required record is absent, inaccessible or outside its stated scope.
• Conflict: evidence for the vehicle, circuit or proposed SKU disagrees.

“Matching voltage” belongs in that record. It does not supply the whole decision.

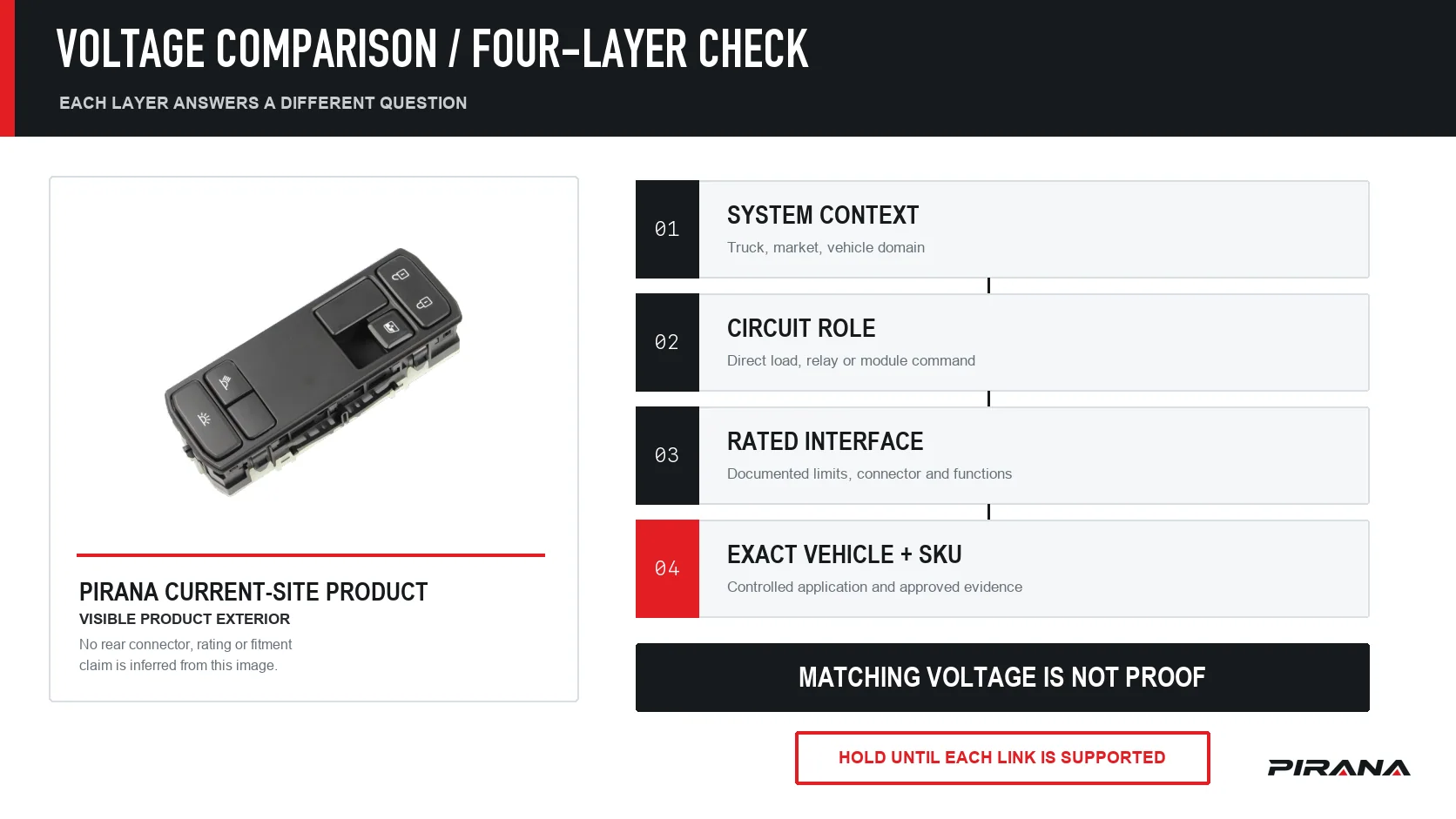

The four-layer voltage check

Use four layers in order. Each answers a different question, and a later commercial approval cannot repair a missing earlier fact.

Layer	Question to answer	Minimum record	What the layer does not establish
1. System context	Which truck, market, production configuration and electrical domain supply this circuit?	Make, series or platform, applicable production details, market, LHD/RHD and relevant vehicle configuration	A switch rating, connector or fitment
2. Circuit role	Does the switch directly control a load, command a relay or module, or serve another defined function?	Applicable vehicle/system document naming the switch function and control path	The switch’s contact or signal limits
3. Rated interface	What voltage range, current or signal duty, connector, keying and functions does the proposed switch require?	Current product datasheet, drawing or approved sample record for the proposed SKU	That the item fits a particular truck
4. Exact vehicle + SKU	Does the replacement relationship cover the exact vehicle configuration and required functions?	Complete OE reference, PIRANA SKU, application scope and approval evidence	Permission to substitute across another revision or market

The correct result after each layer is Supported, Hold or Conflict. “Probably compatible” is not a fifth status because it hides the missing record that should be resolved before purchase.

Layer 1: define the electrical domain

A commercial truck can contain more than one voltage domain. Volvo’s VN(4) body-builder electrical guide, for example, describes a 12V fuse holder for 12V cab loads and a chassis fusebox providing 12V and 24V protected power in the documented vehicle scope. Volvo Trucks, Section 3: Electrical Wiring and Connections, PDF pages 76 and 81.

Mercedes-Benz Special Trucks likewise lists a 24V base electrical system for the Unimog while offering a 12V current socket as equipment. Mercedes-Benz Special Trucks, cab technical and equipment information. DAF’s body-builder guidance distinguishes body interfaces and converted cab loads in its Euro 3–5 scope. DAF, BodyBuilder Guidelines, Euro 3–5.

These examples do not describe every truck. They show why “this truck is 24V” is too broad. Record the affected function and the vehicle, market and configuration documentation that assigns its supply or signal domain. Do not carry a voltage from one convenient circuit to another.

Scania’s Truck Bodybuilder Driver’s Manual extracts use 24V in a bounded jump-start instruction, where both vehicles must share that nominal battery voltage. Scania, Driver’s Manual extracts. That statement is useful inside its jump-start scope; it does not define every electrical circuit in all Scania generations.

Layer 2: separate direct load, relay and module-command paths

The same switch family can appear in different circuit roles. PIRANA’s power-window-switch catalogue explains that a window switch may directly switch motor current or send a command to a control module. Those are different electrical jobs even when the control face looks familiar.

A module-based architecture also separates supply, inputs, outputs and switching devices. Volvo’s cited electrical guide describes a Body Builder Module with a 24V supply and output, plus digital, analogue and PWM inputs, outputs and relay drivers. PDF page 66.

Use the applicable wiring or system document to classify the proposed replacement’s role:

Circuit role	What must be documented	Why the voltage label is insufficient
Direct load switching	Switch contact/current duty, load path, connector and required functions	A low-current signal output and a motor-load contact may share a family name but not a rating
Relay command	The switch’s contact or signal duty, coil/control side and interface	The relay or module controls the load; the switch does not automatically inherit that load rating
Module command	Signal type, electrical interface, communication or input expectations, connector and functions	A mechanical look or pin count does not establish the required command path
Local or secondary control	The distinct function and control path for that position	A master and a local switch can belong to the same window system without being interchangeable

The OE-number and connector identification guide owns how to collect the original reference and visible interface. This comparison does not treat those identifiers as proof of the electrical role.

Layer 3: compare the rated interface with the actual requirement

Four numbers or descriptions are often collapsed into “12V switch” or “24V switch”:

Item	What it describes	What to require
Nominal system context	The voltage-domain label used around the circuit	The vehicle/system document that identifies the relevant domain
Operating range	The voltage interval in which the part is documented to function	A product-specific range in a current datasheet or approved drawing
Contact or current duty	The load or signal switching capability of the relevant contacts or outputs	A rating tied to the load type and conditions being approved
Interface	Connector, keying, signal or communication and required functions	A drawing or approved sample that matches the exact control assembly

None can substitute for another. A wider nominal range on a listing does not prove that the proposed part meets the truck connection requirement. Equal pin count does not prove the same pin functions. A photograph does not reveal an internal contact rating. A connector match does not show whether the part directly switches a load or commands a module.

PIRANA’s product-selection process asks for the vehicle application, connector or housing, required functions and sample approval. Power Window Switch Catalogue. Treat that information as a required review package, not a finished compatibility statement.

The adjacent battery-switch catalogue has a different isolation duty. Its ratings and construction cannot be borrowed for a window, lighting or cabin-control switch merely because both parts are found in a truck.

This distinction also explains why no universal electrical test belongs in this article. A voltage reading, continuity result or improvised direct-power test requires the exact circuit, connector face, expected state, tool and limits. Without the applicable service information, record the missing evidence rather than turn a probe into a fitment decision.

Layer 4: convert the candidate into exact vehicle and SKU evidence

A voltage comparison becomes purchasing evidence only when it reaches a specific item and configuration:

1. Capture the complete original OE reference, any visible revision and the switch’s position and functions.
2. Name the truck make, series or platform, relevant production information, market, LHD/RHD and physical side where applicable.
3. Compare the circuit requirement with the proposed SKU’s current datasheet, drawing and approved sample.
4. Confirm that the supplier’s application record covers that exact relationship.
5. Record who approved the evidence, on which date, for which quantity and order scope.

Keep the vehicle configuration and the supplier SKU separate. An OE number identifies a reference in a broader vehicle/part context; a PIRANA SKU identifies the item being proposed. Neither identity alone proves the replacement relationship.

If installation is being considered, the replacement and verification checklist owns the later physical and acceptance checks. If the immediate question is why a window does not operate, use the truck window-switch diagnosis guide. Voltage matching is not a diagnosis.

Worked example: HQ-6936 remains on Hold

PIRANA’s public HQ-6936 product record identifies the PIRANA part as HQ-6936, lists OE references 2569030 / 2398122, and names SCANIA as the application. As reviewed on 22 October 2026, that public record does not show a complete per-SKU voltage range, current/contact duty, circuit role, connector drawing or series/model/year scope.

That does not mean the switch is unsuitable. It means a buyer cannot honestly move it from candidate to verified part on the public listing alone.

Check	Evidence currently visible	Status
PIRANA SKU and OE references	HQ-6936; 2569030 / 2398122	Supported for the identity fields shown
Broad application	Scania	Supported only as a broad catalogue label
Exact truck series/model/year and market	Not shown in the reviewed public record	Hold
Circuit role	Not shown in the reviewed public record	Hold
Per-SKU voltage/current and interface	Not shown in the reviewed public record	Hold
Approved sample/order scope	Not shown in the reviewed public record	Hold

The resulting disposition is Hold. Ask for the current HQ-6936 datasheet or drawing and the controlled application record that cover the exact Scania configuration. Do not turn the broad Scania label into a year-independent replacement claim.

The same treatment applies to every PIRANA SKU. A public product image is useful for locating a visual candidate. It is not a voltage certificate, connector map, test report or fitment guarantee.

Use Supported, Hold and Conflict as the decision rule

Outcome	When to use it	Permitted next step
Supported	The vehicle/circuit requirement and the proposed SKU’s current documents agree on every decisive field	Proceed to the agreed sample or order approval
Hold	A decisive field, mapping, document edition or scope is missing, inaccessible or unclear	Request the named evidence; do not promise compatibility
Conflict	Two records disagree about the vehicle, circuit, connector, rating or SKU	Resolve the contradiction before sampling, ordering or installation

Use these statuses one field at a time. A record can be supported for the broad vehicle family and still held for exact production scope. It can be supported for a connector drawing and still held for electrical duty. The final approval is the status of the complete record.

Label a claim supplied in a sales message as a supplier statement and request its underlying scope. A management-system certificate remains a management-system record; request separate exact-product approval for a claimed application. A listing that names a vehicle brand still needs scope for the model, year, steering configuration, position and market.

Copy-ready voltage comparison record

Use unknown rather than leaving a decisive field blank.

Review date / reviewer:
Proposed PIRANA SKU / reference:
Complete original OE reference / visible revision:
Truck make / series or platform / production information:
Market / LHD or RHD / physical side and position:
Switch function and required functions:
Original switch or system document and edition:

1. System context
  Relevant voltage domain:
  Evidence / document scope:
  Status: SUPPORTED / HOLD / CONFLICT

2. Circuit role
  Direct load / relay command / module command / local control / other:
  Applicable vehicle-system evidence:
  Status: SUPPORTED / HOLD / CONFLICT

3. Rated interface
  Proposed switch voltage/operating range and source:
  Current or signal duty and source:
  Connector / keying / interface and source:
  Status: SUPPORTED / HOLD / CONFLICT

4. Exact vehicle + SKU
  PIRANA application scope and source:
  Approved sample / revision / drawing:
  Any scope limitation:
  Status: SUPPORTED / HOLD / CONFLICT

Unresolved field:
Next document or responsible approval:
Final disposition: CANDIDATE / HOLD / CONFLICT
Order or sample scope:

A good record names the decisive evidence rather than saying “wiring checked.” It also keeps the date and document edition, because a revised connector, approved sample, vehicle configuration or market requirement can change the decision.

Reopen the decision when any input changes

Repeat the four-layer review when a new record changes any of these links:

• Vehicle series, production configuration, market, LHD/RHD or physical side;
• circuit function, direct-load/relay/module role or required operating state;
• connector, keying, pin arrangement or required functions;
• switch drawing, approved sample, installed components or manufacturing revision;
• PIRANA SKU, OE mapping, catalogue application or controlled document;
• destination market, customer requirement or order-specific acceptance record.

Record the former approved state and the reason for re-review. A substitute material, connector supplier or sample revision is not automatically outside scope, but it has to be reintroduced into the same controlled evidence chain.

The aim is not to repeat every test for every order. It is to know which evidence becomes invalid when a specific input changes.

What to send PIRANA for a bounded review

PIRANA’s power window switch catalogue can be searched by vehicle and OE reference. Once the original part and exact truck configuration are recorded, the quotation route can receive the circuit requirement, proposed SKU, OE references, vehicle details, front/rear/connector photographs, required functions, quantity and destination.

Label missing items as unknown. A precise Hold is more useful than an incomplete claim of compatibility because it shows which document or decision will unblock the order.
